Australian-engineered permanent formwork

ReoLok.

Fast-track non-combustible commercial walls. ReoLok uses the reinforcing bar itself to lock opposing fibre-cement panels into place creating a super strong cassette before concrete placement.

Online takeoff Upload plans

REOLOK® / PANEL LOCKING

How it works

The cavity stays open
until you’ve checked it.

Lightweight 6mm fibre-cement panels, steel reinforcement and the ReoLok connection system create a rigid cavity that remains open for reinforcement inspection before the opposing panels are installed and concrete is placed.

✓Panels up to 3600mm high × 1200mm wide — reinforcing steel locks adjacent panels together

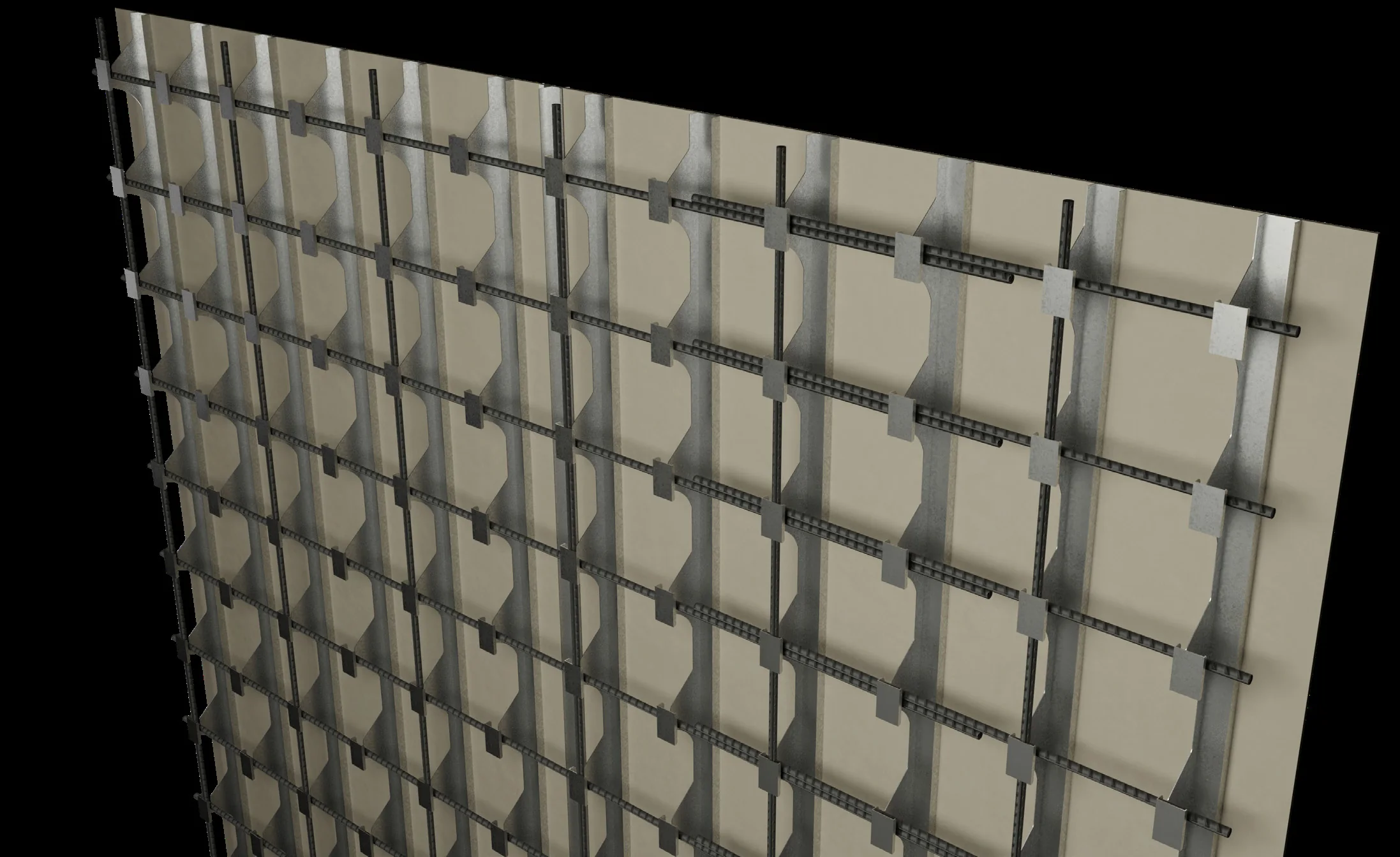

✓Full cavity visibility — engineers visually verify reinforcement before the cavity closes
✓Lighter panels — improved safety and faster installation
✓Non-combustible connectors and fibre-cement faces — NCC-ready for external walls
✓Lower production and logistics costs — commercial medium-rise structural walls

Approved source: ReoLok Design Manual, November 2025 edition.

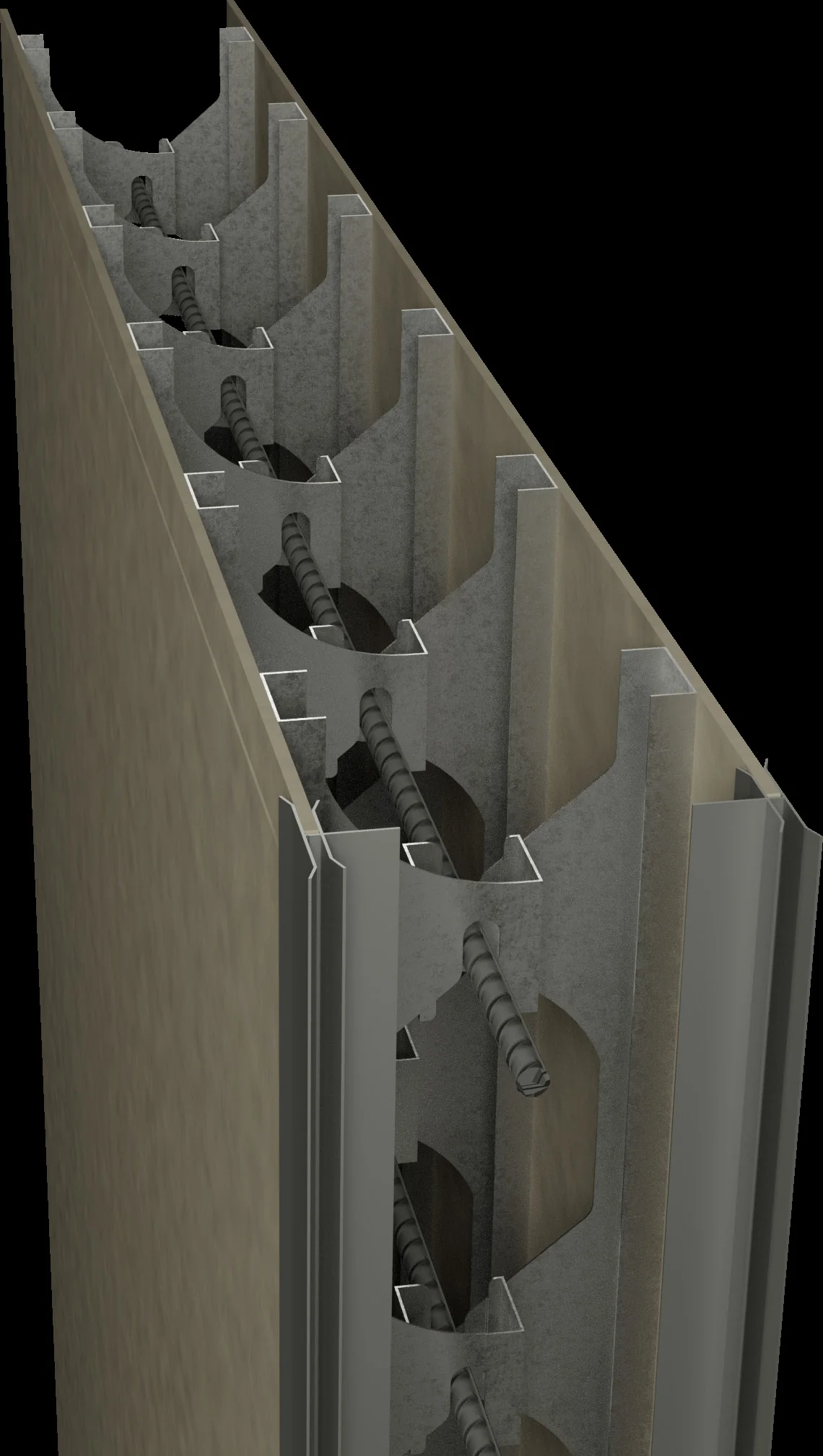

RL162 panels locked together by reinforcing steel

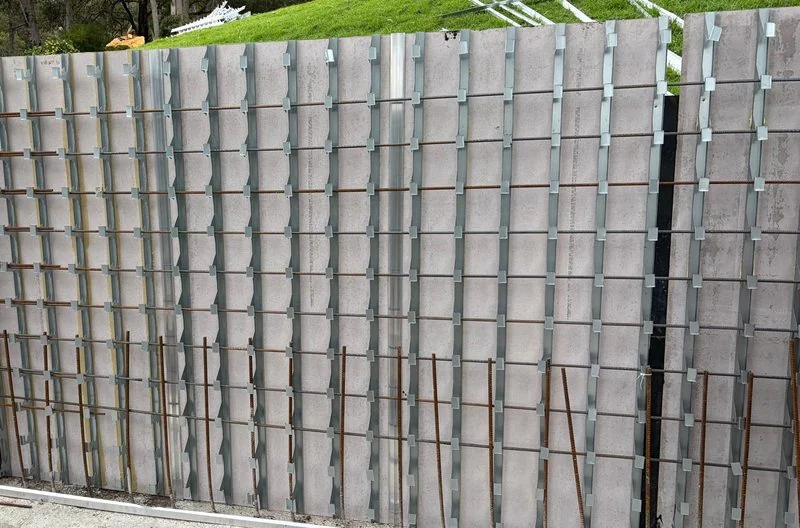

ReoLok panels locked together by reinforcing steel on site

Verified specifications — Nov 2025 manual

Two models. One system.

Model

Wall

Concrete

Fire FRL

Acoustic

Thermal R

RL162

162mm

150mm

180/180/180

50 +Ctr

0.25 m²·K/W

RL200

200mm

188mm

240/240/240

54 +Ctr

0.25 m²·K/W

Project-specific structural design remains the responsibility of suitably qualified consultants.

Best applications

Where ReoLok earns its keep.

Inter-tenancy & corridor walls

Fire-rated, acoustically rated party walls for multi-res and commercial.

Lift & stair shafts

Rigid, inspectable cores without conventional blockwork.

Retaining & basement walls

Below-ground structure with verified reinforcement before the pour.

Blade walls

Slender structural walls for medium- to high-density construction.

External load-bearing walls

Non-combustible faces, rebated and ready for textured render or cladding.

Internal dry-lined walls

Dry-line internally for plasterboard finishes.

ReoLok wall with reinforcing steel inspected before the pour

ReoLok on site — reinforcing steel locks adjacent panels together, with full cavity visibility before the pour.

Installation video

See ReoLok in action.

Clear answers, no invented specs

Frequently asked questions

What can I build with ReoLok?

Residential and commercial buildings, factories, warehouses, shopping centres, basement and retaining walls, apartments and inter-tenancy walls — external and internal load-bearing walls across the board.

What are the standard ReoLok models?

RL162 has a 162mm finished wall with a 150mm concrete core (180/180/180). RL200 has a 200mm finished wall with a 188mm concrete core (240/240/240). Both are documented in the November 2025 ReoLok Design Manual.

Can the reinforcement be inspected before concrete placement?

Yes — the wall cavity remains open so engineers can visually verify reinforcement placement before the opposing panels close the cavity.

Does Formcraft provide technical assistance?

Yes — technical support is available for architects, engineers and construction teams. Project-specific design and certification remain the responsibility of suitably qualified consultants.

Can I manufacture or distribute ReoLok?

Interstate and overseas builders, manufacturers and partners can produce ReoLok under licence — see the licensing pathway for the process.

Price it from your plans

Know what ReoLok costs
before you talk to anyone.

Upload your plans to the FormCraft takeoff tool, trace your walls, and get an indicative ReoLok price in minutes — or send the plans over and we’ll do it for you.
